Description

The BodyIron MFX360 Ultimate Trainer is an All-In-One Functional Trainer & Smith Machine that user the combine 220kg weight stack, MFX360 is a top of the Body X serious, series and guarantees to keep your workouts fresh and interesting for years to come! Suitable for home or commercial use, the MFX360 offers everything you need to achieve an intense, full body workout using a single piece of equipment.

There are two weight stacks of 110kg on this machine with 1:1 Pulley Ratio, which allow you to select the right weight based on your fitness goals.

Functional Trainer : 1:1 Pulley Ratio 220Kg of Weight Resistance.

Smith Machine: 1:1 Pulley Ratio 220Kg of Weight Resistance on.

Enhance your barbell training from the ground up and lift with greater safety using the Smith Machine. Featuring commercial-grade guide rails, it delivers an exceptionally smooth lifting experience. The MFX360 model is equipped with a secure lock-and-release system and built-in safety catches, allowing you to train to your full potential—even without a spotter.

The All-In-One Functional Trainer & Smith Machine Also comes with a Pair J-Hooks & Pair Spotter Arms so you can do all the same exercises that you would do on a Half Rack or Power Rack.

The Dumbbell Rack Attachment includes 2 dumbbell trays positioned at an appropriate angle for convenient handling and storage during workouts. This rack can store multiple dumbbells, saving space and keeping your training area organized and safe. Its sturdy construction maximizes your storage capacity, making it the perfect addition to your workout setup. Each tray can take 300Kg a total of 600KG.

Smart Design for Space-Saving Convenience

Our Smith Machine uses a pin-select weight stack system, eliminating the need for traditional weight plate sleeves. This significantly reduces the overall width required perfect for Home Gym or Studio Gym setups where space matters.

Smooth Performance, Every Rep

Enjoy ultra smooth cable motion on the integrated functional trainer, delivering a premium feel with every movement.

Versatile Pull-Up Options

Equipped with a multi-grip chin-up bar, this machine caters to a variety of grip styles and training needs ideal for building upper body strength with comfort and control.

220kg / 484Lb weight stack: No plates needed

The unique Selectorized Smith Bar on the MFX360 is directly tied into the weight stacks. There's no need to load and unload plates to change your weight, just move the pins on the weight stack. Because MFX360 doesn’t have plate holder, it allows save space and time not loading smith bar.

Customizable Storage Hooks

Features detachable and adjustable hooks for easy storage of cable attachments, allowing users to personalize the setup to suit their training preferences.

Attachment

The BodyIron MFX360 incudes many attachments, as well as a long bar to add even more variety to your training. These attachments are extremely useful for performing a range of isolated exercises, such as bicep curls, lateral raises and triceps kickbacks, which is great for focusing in and targeting a specific muscle (or muscle group) during a training session.

1 x Long Bar
1 x Short Bar
1 x Tricep Rope
1 x Ankle Strap
1 x Nylon Strap
2 x Single Handles

Additional Storage Features

The product includes 6 Olympic weight horns for convenient storage of your Olympic or bumper plates. These bolt-on horns are fully adjustable and can be mounted at any height to suit your setup. It also comes with a barbell holder, allowing you to securely store your Olympic barbell when not in use.

This multi-use machine features some of the most effective strength equipment, including a functional trainer, smith machine, power rack and multi-grip chin up bar. These pieces of equipment are excellent for performing a wide variety of upper and lower body exercises includes squats, deadlifts, bench press and pull ups. This means you can enjoy a well rounded workout, or train specific muscle groups as you please all with the one piece of equipment. Save on space but work up a sweat.

Optional Fixed Attachment Sold Separately.

You can have 1 or 2 different Fixed Attachment connected to your BodyIron MFX360 Ultimate Trainer at one time.

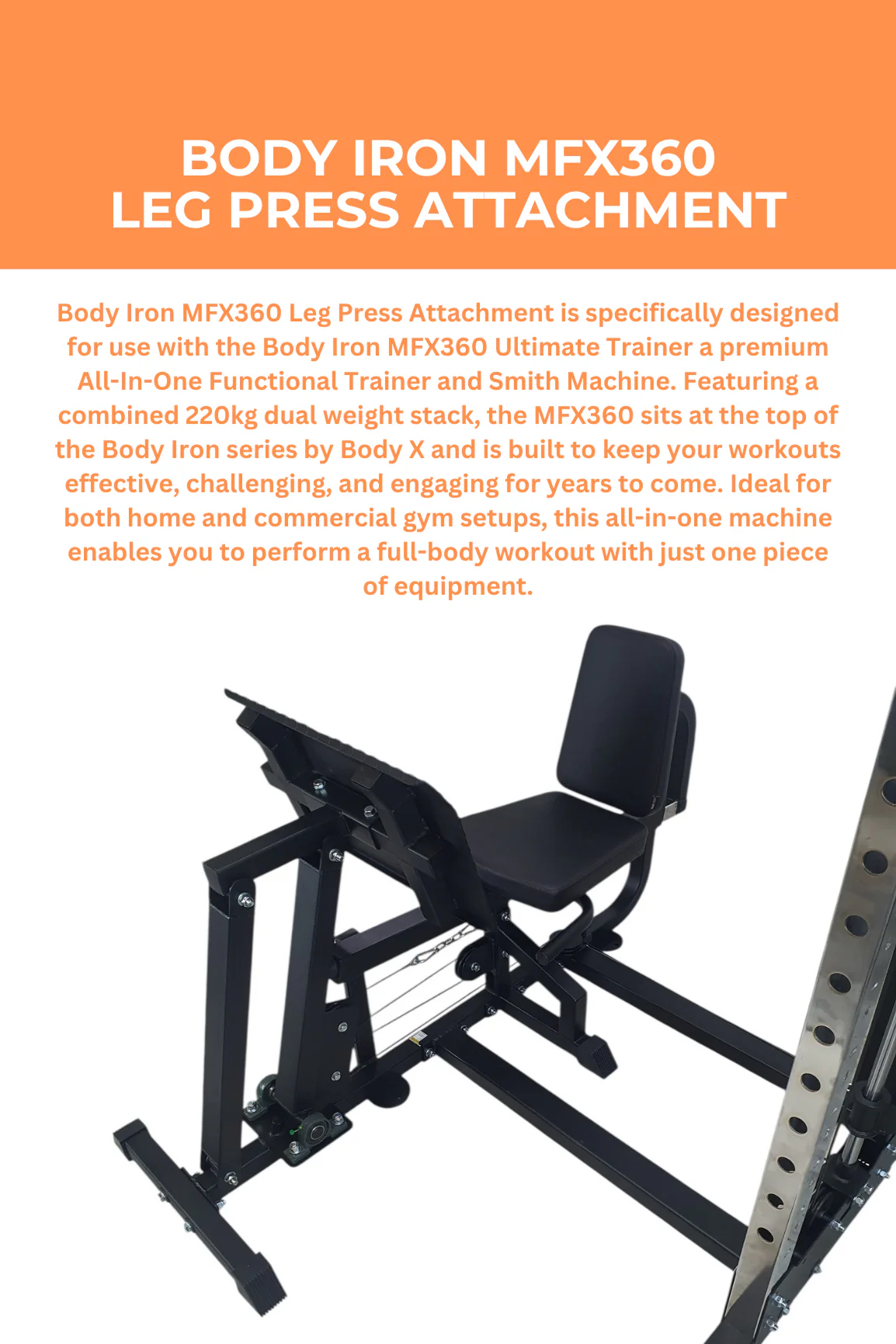

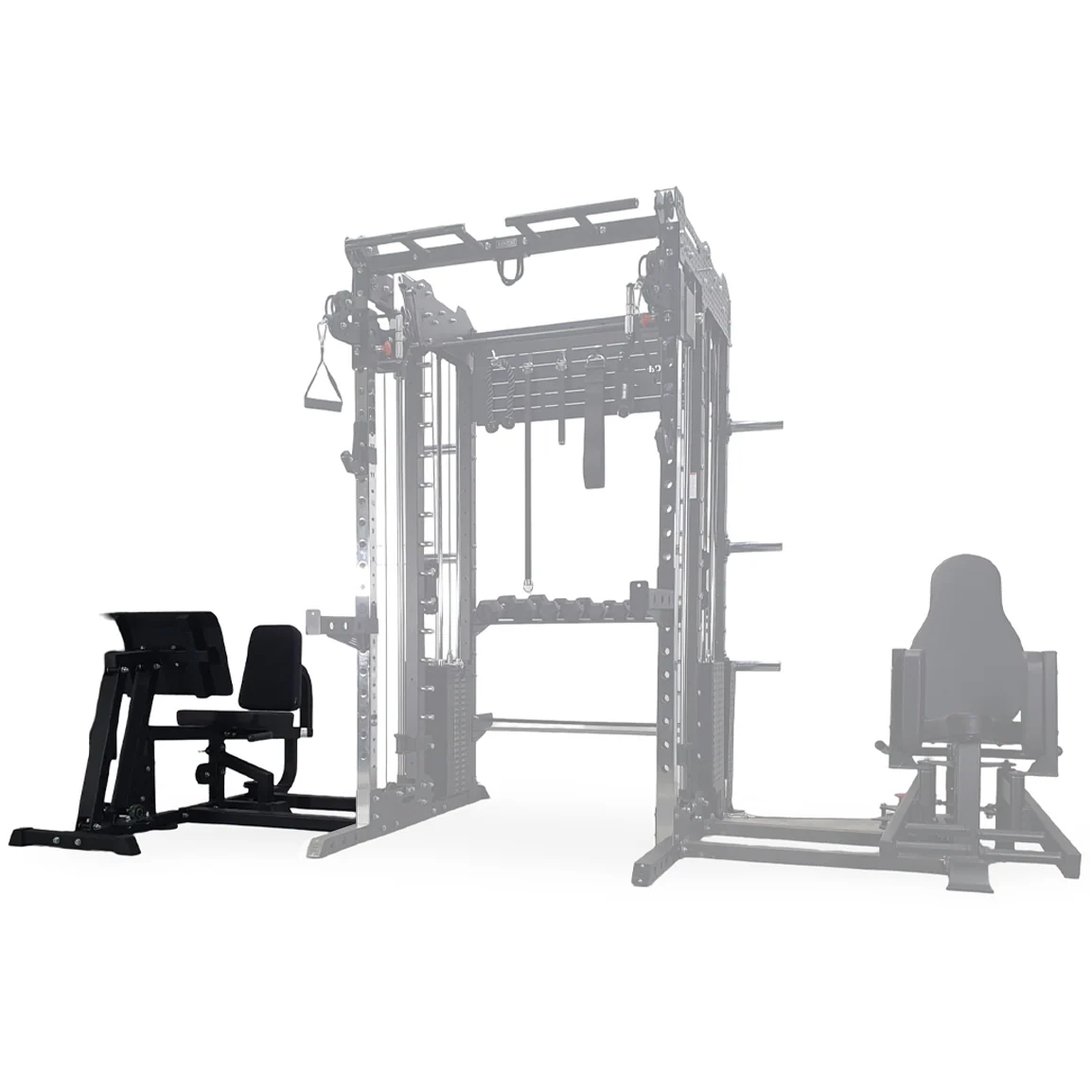

Leg Press MFX360 Fixed Attachment that connects on the Left Side of the BodyIron MFX360 Ultimate Trainer.

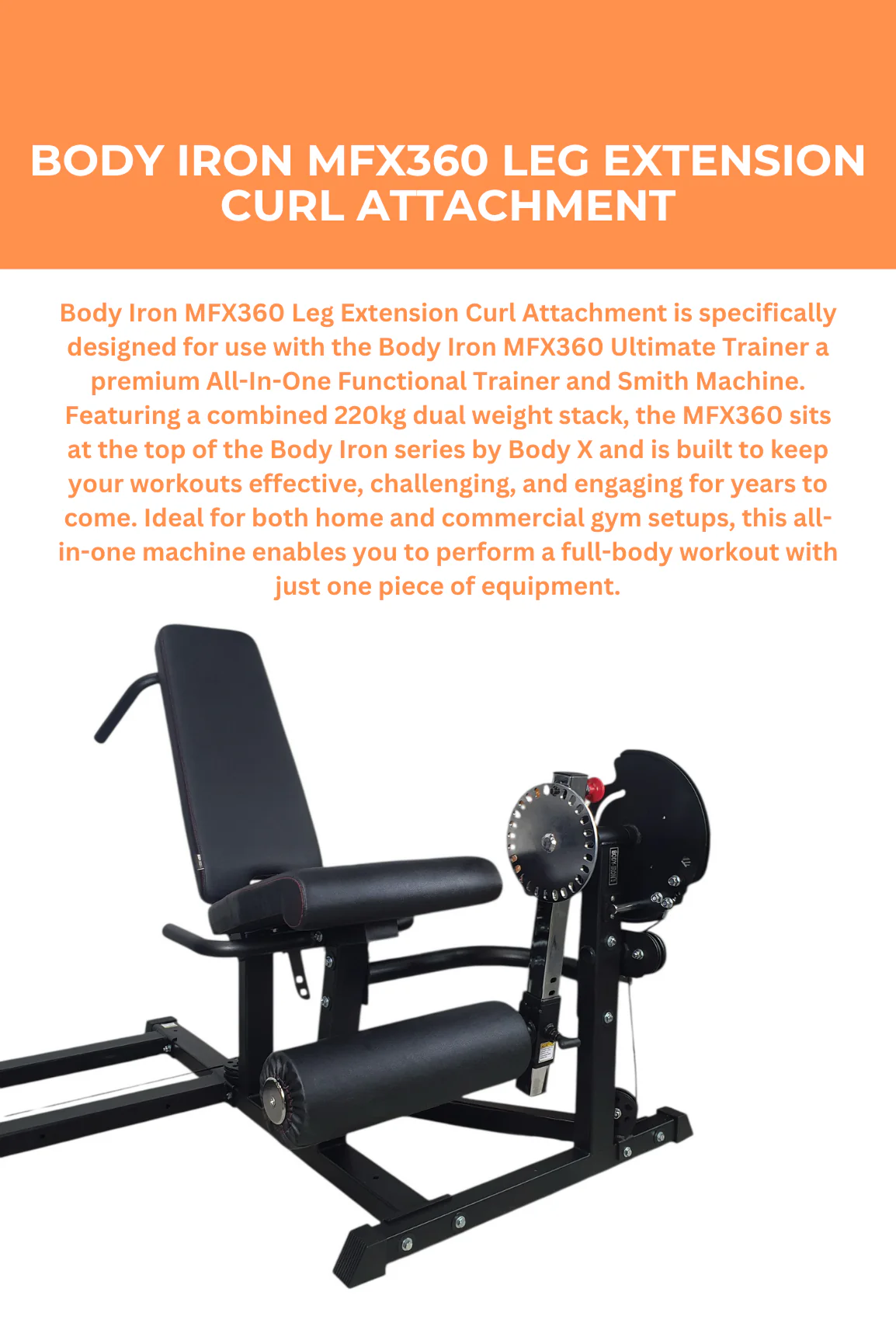

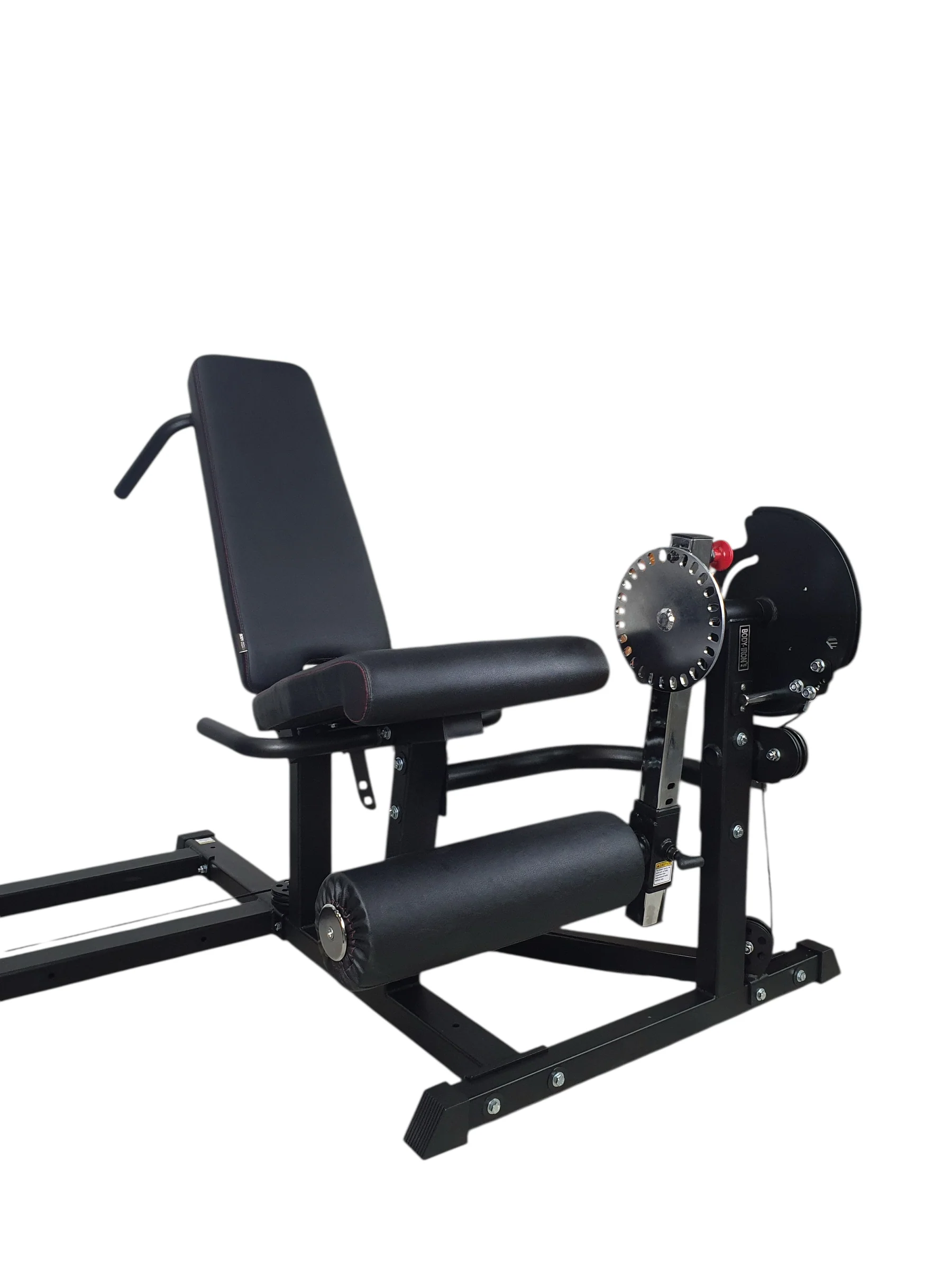

Leg Extension Curl MFX360 Fixed Attachment that connects on ether side of the BodyIron MFX360 Ultimate Trainer.

Adductor & Abductor MFX360 Fixed Attachment that connects on ether side of the BodyIron MFX360 Ultimate Trainer.

Dual-Sided Weight Stack Adjustment

The weight stack is designed for maximum convenience, allowing you to adjust the resistance from both sides of the machine. Whether you’re positioned inside the main frame or seated on an external attachment like a leg press, leg curl, or other attachment, you can easily select your desired weight using the selector pin. This flexible design ensures uninterrupted training flow and improved usability across various exercises.

Optional Removable Attachment Sold Separately

BodyIron Lat Pulldown Seat Attachment - $299
BodyIron Low Row Foot Plate Attachment - $199
Dip Attachment - $99
Sandwich J-hook - $99
BodyIron Roller J Hooks 60x60mm - $99

Specifications

WEIGHT CAPACITIES
Weight Stack: 2 X 110kg.
Product Weight: 430kg.
Maximum Chin-up Bar: 400Kg
Maximum Rackable Weight (Smith Machine): 400kg.
Maximum Rackable Weight (Power Rack J-Hooks): 400kg.
Maximum Rackable Weight (Power Rack Spotter Arms): 400kg.
Whole Rack Capacity: 600kg.
Dumbbell Trays Capacity : 300kg Each Tray = 600kg.
Suspension Mount Capacity : 300kg.
Olympic Weight Horns Capacity : 100Kg Each Horn.

SIZE

Assembled Dimensions: 168cm (L) x 170cm (W) x 225cm (H) approx.
Inside Width: 110cm approx.
Outside Width: 170cm approx.
Inside Depth: 115cm approx.
Outside Depth: 122cm approx. (170cm approx. with plate holders attached).
Maximum Pull Up Bar Height: 220cm approx.

CONSTRUCTION

Material: Chrome front poles, black powder coated finish on frame.
Finish: Powder coating,
Hardware Size: 10mm.
Hole Spacing: 8cm.
Number of Catcher Holes: 21.
Number of Functional Trainer Holes: 16.

INCLUSIONS

2 x Single handles.
1 x Long bar
1 x Short bar
1 x Tricep Rope
1 x Ankle Strap
1 x Nylon Strap
1 x Suspension Mount
1 x Core Trainer
1 x Barbell Holder
1 X Pair J-Hooks
1 x Pair Spotter Arms
2 x Dumbbell Trays
6 x Olympic Weight Horns
2 x 110kg Steel Weight Stacks.

**Please note: some orders will be delivered on a pallet or skid due to the size & quantity of boxes being delivered, for easy and cost effective shipping**

Product Benefits

CONSTRUCTION: Built from heavy-duty steel that is resistant to wear and tear.
VERSATILITY: 3-in-1 machine that combines the three main functions of cable, smith and power rack.
COMPATIBILITY: Can be used with a wide variety of fitness equipment including weight benches, power bands, barbells and Olympic weight plates.
BUILT-IN WEIGHTS: Comes equipped with 2 x 110kg precisely milled, steel plates with nylon bushing.
SMITH MACHINE: Built with linear bearings for smooth movement.

Warranty

Lifetime frame (against manufacturing defects).
2 year parts.
Warranty does not cover wrongful installation, normal wear and tear, misuse or modifications of equipment.
